Gears and shafts are mainly installed in the spindle box to transmit the direction of force. The important position of gears and gear shafts is unshakable whether in traditional machinery or modern machinery.
Characteristics of gear and shaft transmission
Gear and shaft transmission has the advantages of relatively large transmission power, stable torque, adjustable transmission ratio, low noise, high reliability, easy installation and maintenance, and meeting the requirements of low transmission rate and high precision under different powers.
Selection of gear and shaft transmission
The selection of gear and shaft transmission devices should take into account the load type and load size required by the design, the required input and output speeds, transmission accuracy, and gear and bearing load capacities.
Notes on installing gears and shafts
When installing the transmission device, attention should be paid to the gear model, number of gear teeth, pressure angle of the gear, installation accuracy of the shaft, bearing and gear, and connection method between the gear and the shaft seat, etc. During the installation process, it is important to avoid damaging parts, increasing noise, and reducing transmission accuracy.
Technical requirements for repairing gears and shafts
When repairing gear and shaft transmission devices, technicians should be required to have professional knowledge and skills to fully identify and evaluate the faults of gear and shaft transmission devices, and ensure the quality of repair after disassembly, cleaning, inspection, and assembly.
Gear and shaft transmission methods are very common. In the selection, installation and maintenance of gear and shaft transmission devices, many technical requirements should be kept in mind to ensure the normal operation and maximum efficiency of the device.
Specification
| Tooth | Gleason |
| Profile angle | 20° |
| Midpoint helix angle | 35° |
| Accuracy | 5 |
| Gear backlash | 0.35-0.45 |
| Material | 18CrNiMo7-6 |
| Heat treatment | Carburizing and quenching |
| Surface hardness | HRC59-62 |
| Core hardness | HRC35-46 |
Dingsco manufacturing advantages
1. Our strengths lie in utilizing high-quality materials, employing skilled craftsmanship, and utilizing state-of-the-art precision equipment for customized design and processing.
2. Our products are renowned for their robustness, exceptional strength, impressive torque capacity, and outstanding mechanical properties.
3. With a focus on high rotation efficiency, our gears ensure stable and seamless transmission, resulting in extended service life, noise reduction, and superior shock absorption.
4. With three decades of expertise in gear processing, we have established ourselves as specialists in the field.
5. Our gears undergo carburizing and quenching processes on the tooth surface, enhancing their wear resistance, ensuring reliable operation, and delivering exceptional load-bearing capacity.
6. We offer the option of grinding the tooth surface, guaranteeing even higher precision in our gears.
Product Tags:
|
|

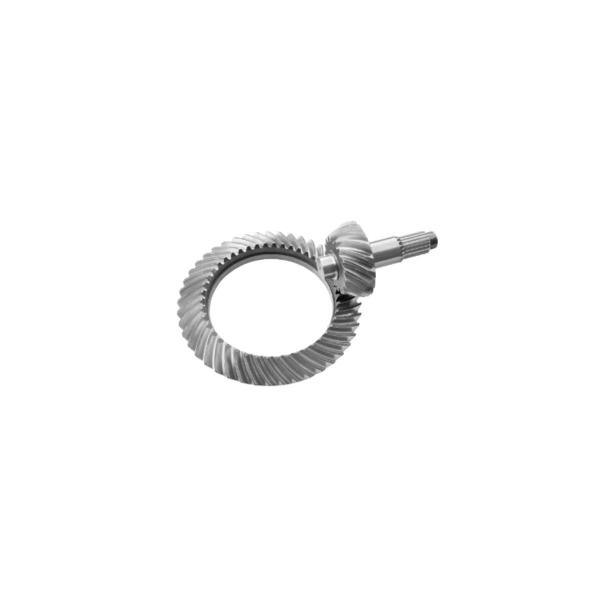

Ring and Pinion Spiral Bevel Gear Carburizing and Quenching Grinding Gear Images
|
